APEKS AM02 Total Station
กล้อง Total Station ความแม่นยำ 2" พร้อม Dual-axis Compensator วัดระยะ Reflectorless 1,000 ม. + Prism 5,000 ม. เชื่อมต่อ ApekSurv ผ่าน Bluetooth แบตคู่ใช้งานได้ 16 ชม.
Total Station
พร้อมจำหน่าย พร้อมให้เช่า
จุดเด่น
- ความแม่นยำมุม 0.8" พร้อม Dual-axis Compensator ติดตาม 0.3 วินาที
- วัดระยะ Reflectorless 1,000 ม. ±(3mm+2ppm)

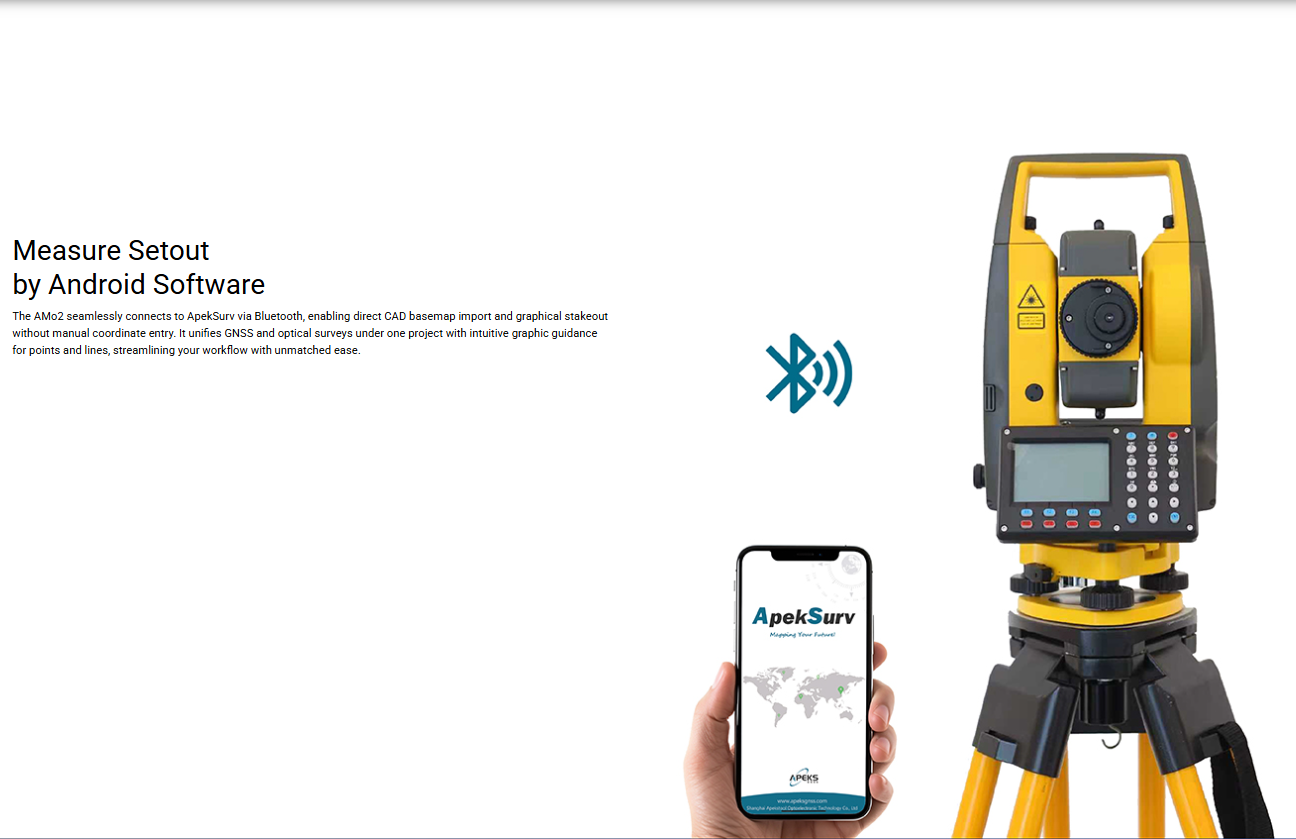

- เชื่อมต่อ ApekSurv ผ่าน Bluetooth — นำเข้า CAD Basemap, Stakeout กราฟิก
- Smart T-P Sensor ปรับ PPM อัตโนมัติตามอุณหภูมิ/ความดัน
- Bluetooth, RS232, Micro USB, 8GB OTG USB, SD Card
- แบตเตอรี่คู่ 7.4V 3,000mAh x2 = ใช้งานได้ 16 ชม. (~12,000 จุดวัด)
- หน่วยความจำภายใน 20,000 จุด + จอสี 2.8"
สเปคสำคัญ
| ความแม่นยำมุม | 0.8" (2") with Dual-axis Compensator |
| ระยะ Reflectorless | 1,000 m, ±(3mm+2ppm) |
| ระยะ Prism | 5,000 m |
| Tracking Speed | 0.3 s |
| เชื่อมต่อ | Bluetooth, RS232, Micro USB, OTG USB, SD Card |
| แบตเตอรี่ | 7.4V 3,000mAh x2 (16 hrs) |
เหมาะสำหรับ
- งานรังวัดที่ดิน
- งานก่อสร้าง / วางผัง
- งานวิศวกรรม
- งานสำรวจภูมิประเทศ
Detailed Specifications
Measurement
| Angular Accuracy | 0.8" (2") |
| Tracking Speed | 0.3 s |
| Compensator | Dual-axis |
| Reflectorless Range | 1,000 m |
| Reflectorless Accuracy | ±(3mm+2ppm) |
| Prism Range | 5,000 m |
| Display | 2.8" Color LCD |
Connectivity & Storage
| Bluetooth | Yes — connects to ApekSurv for graphical stakeout |
| RS232 | Yes |
| USB | Micro USB + 8GB OTG USB drive |
| SD Card | Supported |
| Internal Storage | 20,000 points |
Power
| Battery | 7.4V 3,000mAh x2 |
| Runtime per Battery | ~8 hrs |
| Total Runtime | ~16 hrs (~12,000 measurements) |
สนใจสินค้านี้?
คัดลอกข้อความแล้วส่งผ่าน Messenger เพื่อสอบถามราคาและรายละเอียด
